Aluminium Frame Tents

Aluminium Frame Tents

Frame Work: Hard Pressed Extruded Aluminium 6061 / T6 (13HW). Cover Material: PVC Coated Polyester Textile Flame Retardant as per DIN 4102, B1, M2. Max. Allowed wind Speed: 80 km/hour 0.3 kn/m2.

Category: Brand:
Aluminium Frame Tents
Aluminium Frame Tents - Image 2
Aluminium Frame Tents - Image 3
Aluminium Frame Tents - Image 4
Aluminium Frame Tents - Image 5
Aluminium Frame Tents - Image 6
Technical
Details

Aluminium Frame Tents · Standard / Big / Pagoda Tent

Specifications
Size 6 Mtr x 9 Mtr 6 Mtr x 12 Mtr
Wall Height 2.6 Mtr 2.6 Mtr
Ridge Height 3.68 Mtr 3.68 Mtr
Main Profile 82 x 48 x 3mm 82 x 48 x 3mm
Frame Work Hard Pressed Extruded Aluminium 6061 / T6 (13HW) Hard Pressed Extruded Aluminium 6061 / T6 (13HW)
Cover Material PVC Coated Polyester Textile Flame Retardant as per DIN 4102, B1, M2 PVC Coated Polyester Textile Flame Retardant as per DIN 4102, B1, M2
Max. Allowed wind Speed 80 km/hour 0.3 kn/m² 80 km/hour 0.3 kn/m²

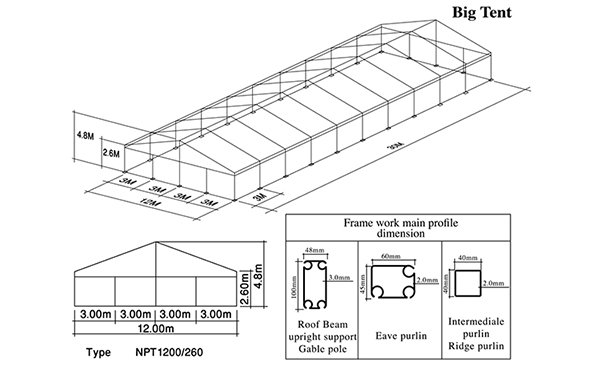

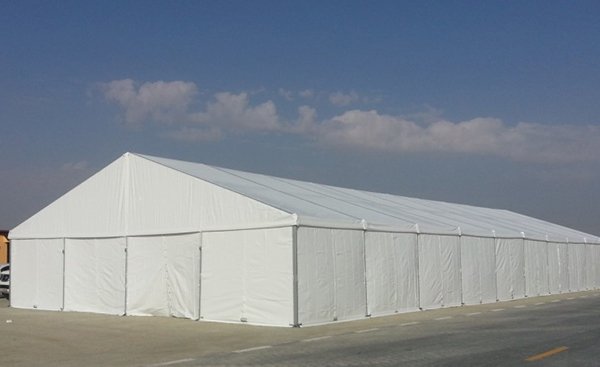

BIG TENTS undefined
Size 12 Mtr x 30 Mtr
Wall Height 2.6 Mtr
Ridge Height 4.8 Mtr
Main Profile 100 x 48 x 3mm
Frame Work Hard Pressed Extruded Aluminium 6061 / T6 (13HW)
Cover Material PVC Coated Polyester Textile Flame Retardant as per DIN 4102, B1, M2
Max. Allowed wind Speed 80 km/hour 0.3 kn/m²

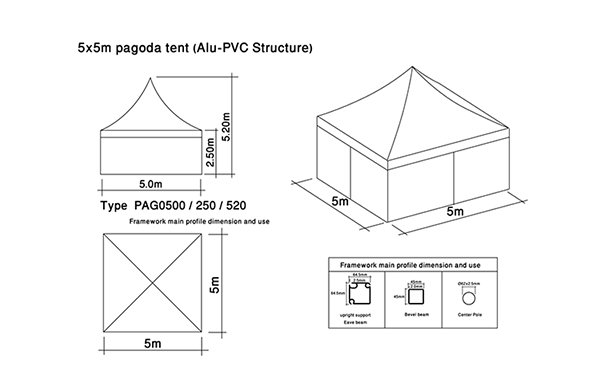

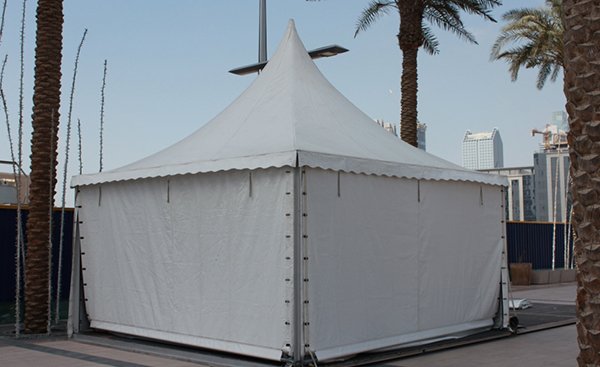

PAGODA TENT undefined
Size 5 Mtr x 5 Mtr
Wall Height 2.5 Mtr
Centre Height 5.2 Mtr
Main Profile Upright Support 64.5 x 64.5 x 2.5mm, Bevel Beam 45 x 45 x 2mm, Centre Pole 62 x 2.5mm
Frame Work Hard Pressed Extruded Aluminium 6061 / T6 (13HW)
Cover Material PVC Coated Polyester Textile Flame Retardant as per DIN 4102, B1, M2
Max. Allowed wind Speed 80 km/hour 0.3 kn/m²

✦
