Technical
Details

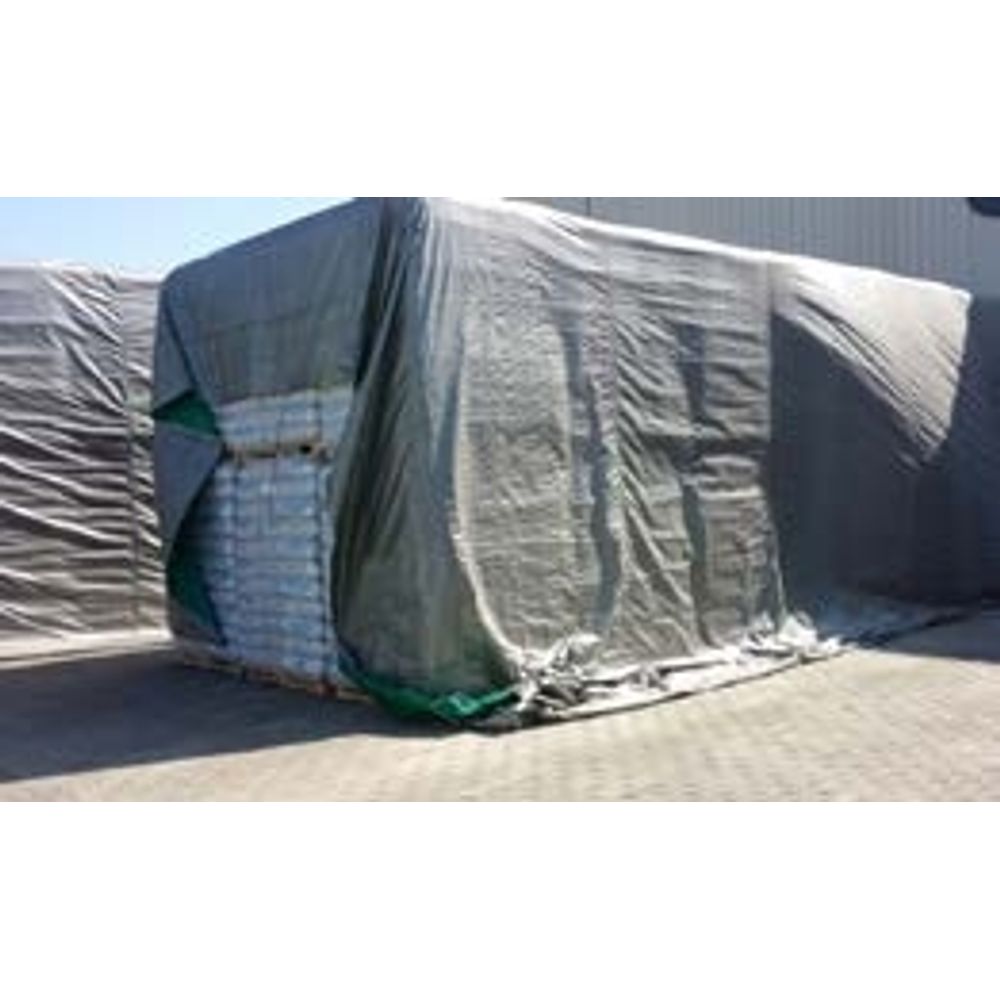

Dutarp PE Tarpaulin 200 GSM · High Quality PE Tarpaulin · Product Code: PE200 · Reinforced PE Tarpaulin
Dutarp – PE Tarpaulins are made High Quality PE Fabric. Water Proof, Stabilized against ultraviolet rays & excess heat for long outdoor exposure.
| Type |
Reinforced PE Tarpaulin |
| Material |
Made with HDPE fabric with both sides LDPE Lamination |
| Weave |
14×14 Per Sq Inch |
| Material Weight |
Min 200 grams/m² (+/- 5%) |
| Treatment |
Stabilized against ultraviolet rays & excess heat for long outdoor exposure. Max 5% loss on original tensile strength under ISO1421 after 1500 hours UV Under ASTM 653/93 |
| Tensile Strength |
Min 600 N both directions of warp and weft (BS 2576, 50mm grab test or equivalent) |
| Tear Strength |
Min 100 N both directions (BS 4303 Wing Tear or equivalent) |
| Flammability |
Above 200°C Flash Point |
| Grommets |
Provided with strong aluminum eyelets on 4 sides of the single sheet at 100cms (+/- 5cm) intervals center to center and reinforced with nylon ropes in hem |
| Colour |
Silver/Orange, Silver/Green, Blue/White |
| Size (Feet) |
Size (Meters) |
Weight |
| 12ft x 12ft |
3.6m x 3.6m |
2.59 kgs |
| 12ft x 15ft |
3.6m x 4.5m |
3.24 kgs |
| 12ft x 18ft |
3.6m x 5.4m |
3.90 kgs |
| 15ft x 18ft |
4.5m x 5.7m |
5.13 kgs |
| 18ft x 24ft |
5.4m x 7.2m |
7.78 kgs |
| 20ft x 20ft |
6.0m x 6.0m |
7.20 kgs |
| 20ft x 30ft |
6.0m x 9.0m |
10.80 kgs |
| 24ft x 24ft |
7.2m x 7.2m |
10.36 kgs |
| 24ft x 30ft |
7.2m x 9.0m |
12.90 kgs |
| 24ft x 48ft |
7.2m x 14.5m |
20.00 kgs |
| 30ft x 30ft |
9.0m x 9.0m |
16.20 kgs |
| 30ft x 40ft |
9.0m x 12m |
21.60 kgs |
| 40ft x 40ft |
12m x 12m |
28.80 kgs |
| 40ft x 60ft |
12m x 18m |
43.20 kgs |
| 50ft x 60ft |
15m x 18m |
54.00 kgs |
| 60ft x 60ft |
18m x 18m |
64.80 kgs |
Note — 5% ± Tolerance acceptable in finished sizes.
• 4M x 50M
• 2M x 100M
✦
