Technical
Details

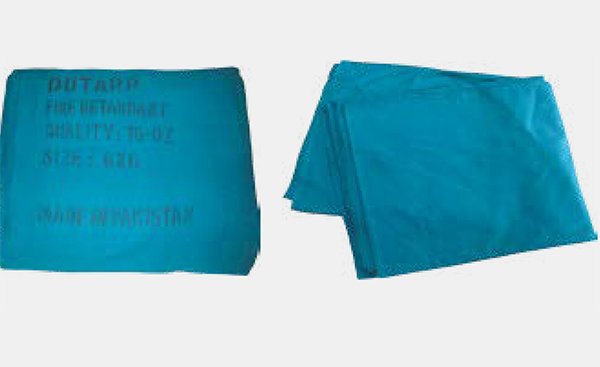

FRC 22 – Fire Retardant Canvas · FRC-22
Applications — This meterial is suitable for Protection against metal grinding and light welding spark
| Product Code |
FRC-22 |
| Description |
Fire Retardant Cotton Canvas |
| Weave |
Plain 1/1 |
| Yarn Tex |
Warp |
10/2 |
10/2 |
| Weft |
10/2 |
10/2 |
| Width |
180 cm |
72 Inch |
| Thickness |
0.45 mm |
0.018 Inch |
| Weight |
450 G/SQM |
16 OZ/SQ Yard |
| Thread Count |
Warp |
18 Per Cm |
46 Per Inch |
| Weft |
9 per Cm |
24 per Inch |
| Tensile Strength |
Warp |
6000 N/5 Cm |
666 Lbs/Inch |
| Weft |
4500 N/5 Cm |
500 Lbs/Inch |
| Treatment |
The Fabric is Fire Retardant and has been tested as per BS7175:1989 – Ignition sources 0 & 1 |
✦
