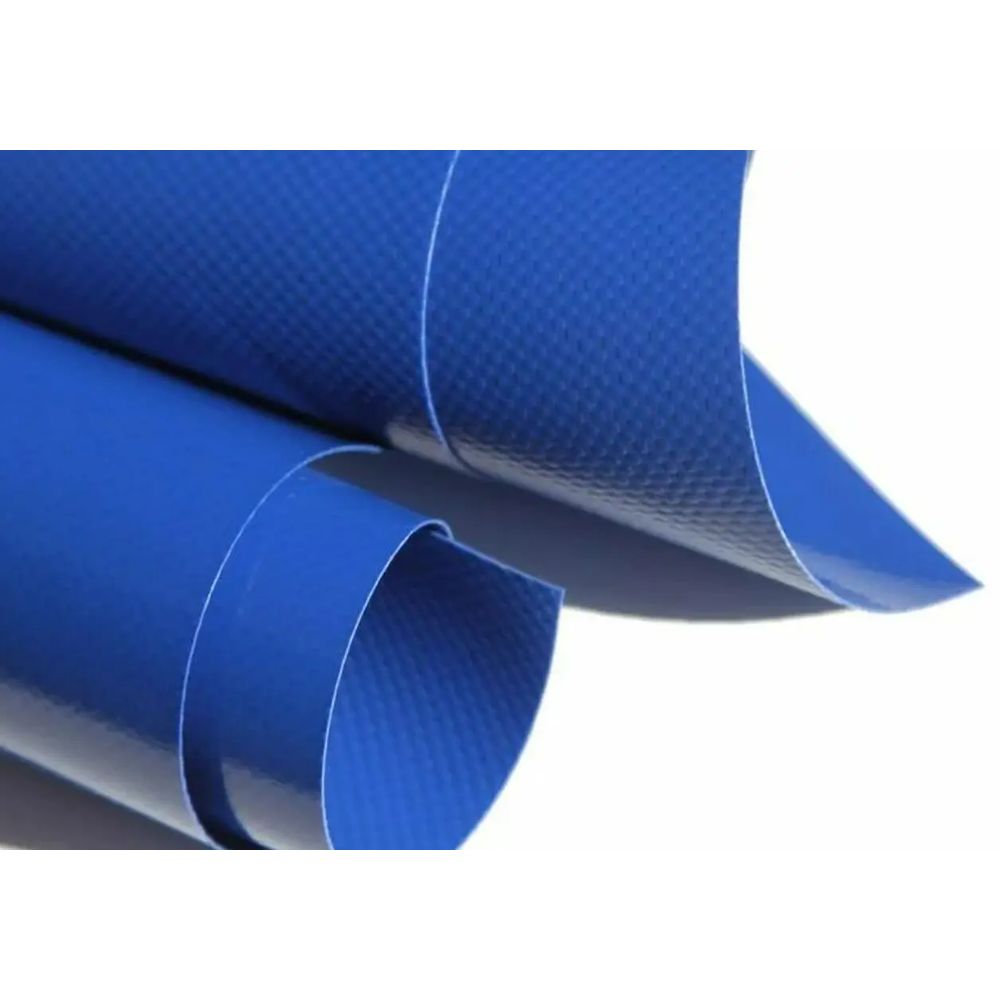

PAF-16 – PVC Coated Fabric 580 GSM

PAF-16 – PVC Coated Fabric 580 GSM

Characteristics: • Excellent Water Proof. • Lighter Than Cotton Canvas • Does Not Stretch When You Use. • Excellent Resistance to Weather. • Fire Retardant as per DIN75200/BS3408 Applications:

Categories , Brand:
PAF-16 – PVC Coated Fabric 580 GSM
PAF-16 – PVC Coated Fabric 580 GSM - Image 2
PAF-16 – PVC Coated Fabric 580 GSM - Image 3
PAF-16 – PVC Coated Fabric 580 GSM - Image 4
PAF-16 – PVC Coated Fabric 580 GSM - Image 5
PAF-16 – PVC Coated Fabric 580 GSM - Image 6
Technical
Details

PAF-16 – PVC Coated Fabric 580 GSM · PAF-16

Description

Characteristics — • Excellent Water Proof. • Lighter Than Cotton Canvas • Does Not Stretch When You Use. • Excellent Resistance to Weather. • Fire Retardant as per DIN75200/BS3408

Applications:

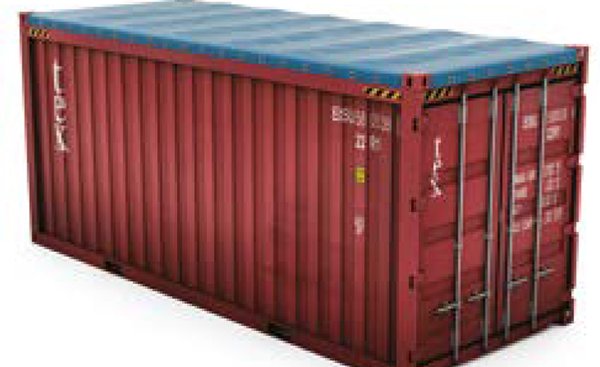

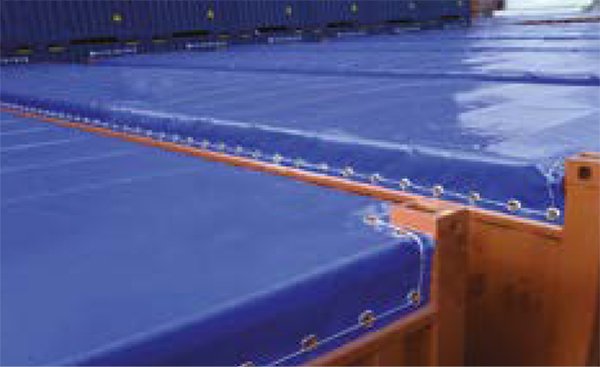

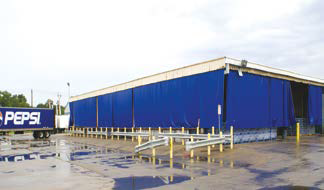

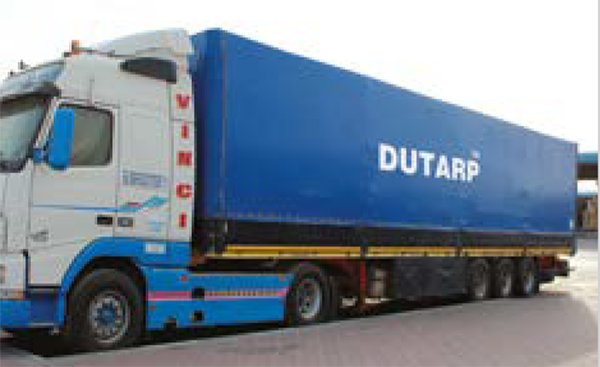

• Tents • Tarpaulins • Boat Covers • Equipment Covers •Truck Covers • Open Top Container Covers

Specifications
TECHNICAL SPECIFICATIONS: PAF – 16
Property Units Test Method Test Result
Base Cloth Denier, Density/sq. inch DIN60001, DIN53830, DIN61101 High Tenacity & Low Shrinkage Polyester Yarn Plain Weave 1000×1000, 16×16
Total Weight gr/m2 DIN53352 580(±20)
Tensile Strength N/5cm DIN53354 2200 x 2000 (each±250)
Tear Strength N DIN53356 150 x 100 (each±50)
Adhesion Strength N/5cm DIN53357 80 x 80 (each±10)
Temp. Resistance °C MIL-C-20696 -30 ~ +70
Fire Resistance DIN75200, BS3408 Pass
Anti-U.V. Treated
Surface Gloss on Topside Semi Gloss on Bottomside
Width cm 183 (72″)
Available Colours

Green

Blue

Grey

Orange

Beige

Yellow

✦
