Technical
Details
PAF 14 · U.V Treated PVC Coated Polyester · 550GSM
• U.V Treated PVC Coated Polyester
| • Weight |
550 Gsm |
| • Operating Temp |
-20°C to 70°C |
| Properties |
Test Method |
Result |
| Base Fabric Material |
— |
Polyester |
| Type of Base Fabric |
— |
1000D * 1000D (20*20) |
| Type of Coating |
— |
PVC Coating Both Sides |
| Thickness |
DIN53353 |
0.46 MM |
| Weight |
DIN53352 |
550 Gsm |
| Tensile Strength |
DIN53354 |
Warp 2458 N/5cm, Weft 2311 N/5cm |
| Tear Strength |
DIN53363 |
Warp 301 N, Weft 258 N |
| Adhesion |
DIN53357 |
90 N/5cm |
| Operating Temp |
— |
-20°C to 70°C |

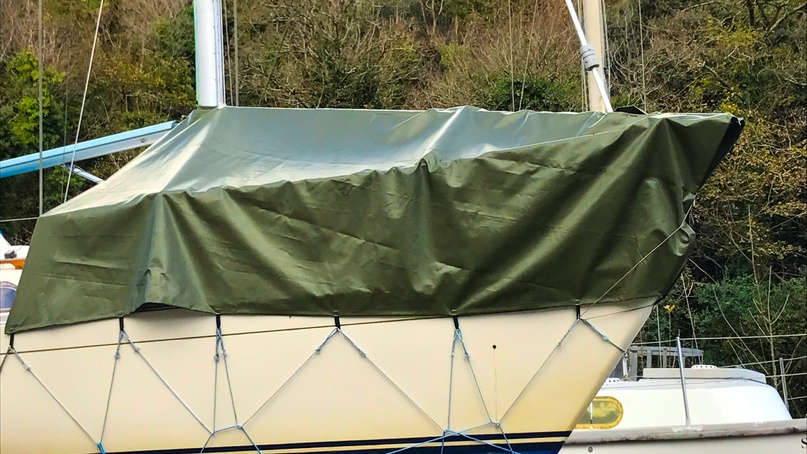

• Boat Covers
• Car Covers

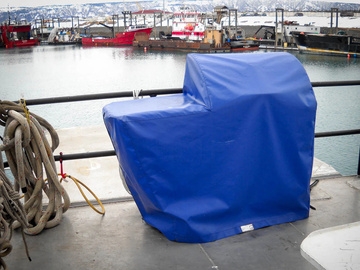

• Equipment Covers

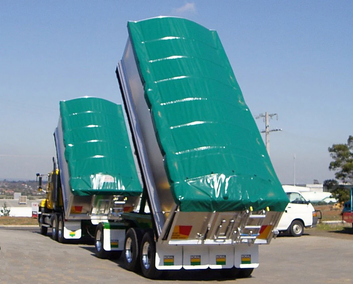

• Truck Covers
✦
