Pipe Clamp Fittings

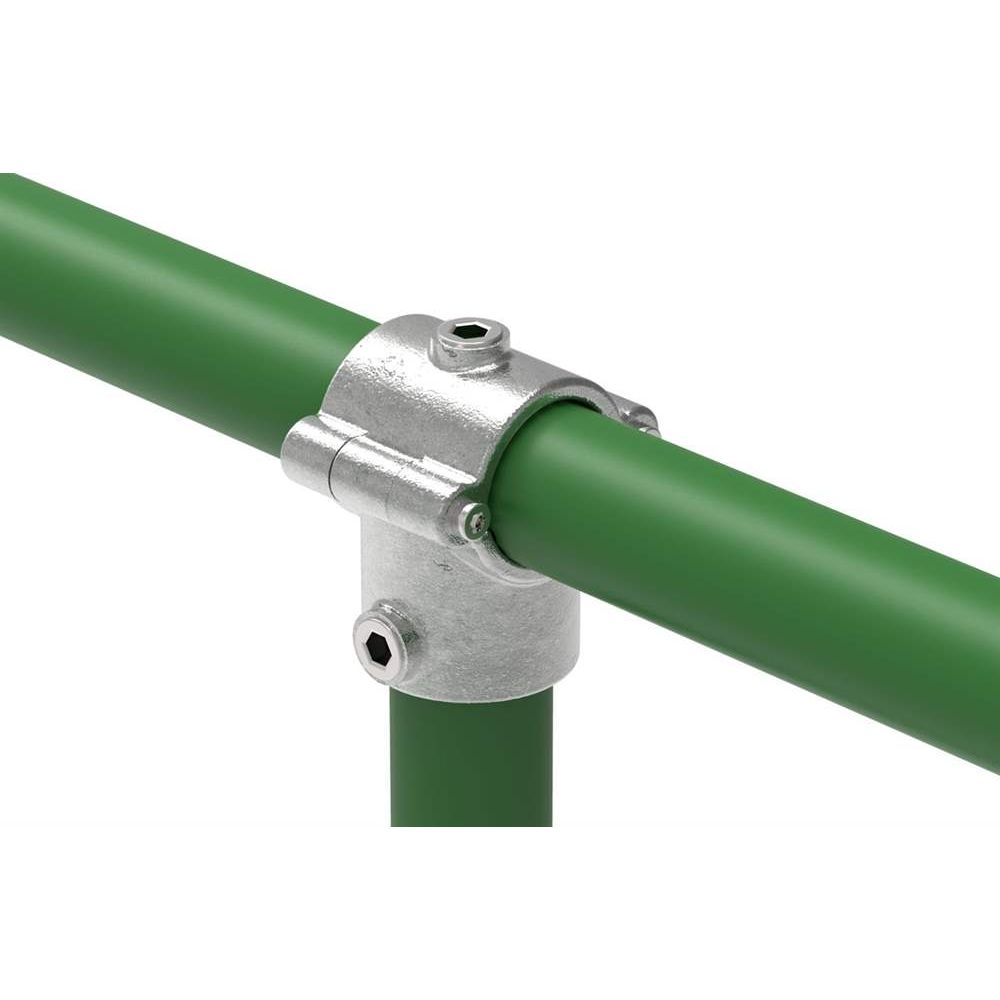

Pipe Clamp Fittings

Pipe clamp fittings available in the following types: 101 SHORT TEE, 104, 116, 124, 125 2-WAY, 125, 128, 129, 131, 132, 133, 147, 148, 149, 150, 169, 169M, 173, 185, 191.

Category: Brand:
Pipe Clamp Fittings
Pipe Clamp Fittings - Image 2
Pipe Clamp Fittings - Image 3
Pipe Clamp Fittings - Image 4
Pipe Clamp Fittings - Image 5
Pipe Clamp Fittings - Image 6
Pipe Clamp Fittings - Image 7
Pipe Clamp Fittings - Image 8
Pipe Clamp Fittings - Image 9
Pipe Clamp Fittings - Image 10
Pipe Clamp Fittings - Image 11
Pipe Clamp Fittings - Image 12
Pipe Clamp Fittings - Image 13
Pipe Clamp Fittings - Image 14
Pipe Clamp Fittings - Image 15
Pipe Clamp Fittings - Image 16
Pipe Clamp Fittings - Image 17
Pipe Clamp Fittings - Image 18
Pipe Clamp Fittings - Image 19
Pipe Clamp Fittings - Image 20
Pipe Clamp Fittings - Image 21
Technical Details

Pipe Clamp Fittings

Galvanised pipe clamp fittings for 48.3 mm (Type D) tube, available in 20 part types.

Specifications
Part No. Fitting Tube Size (mm) a (mm) b (mm) c (mm) d (mm)

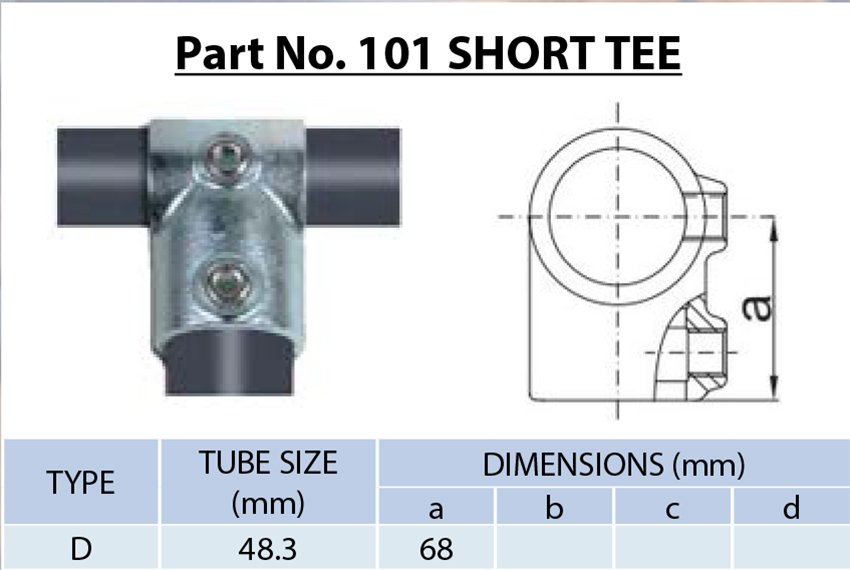

101 SHORT TEE Short Tee 48.3 68

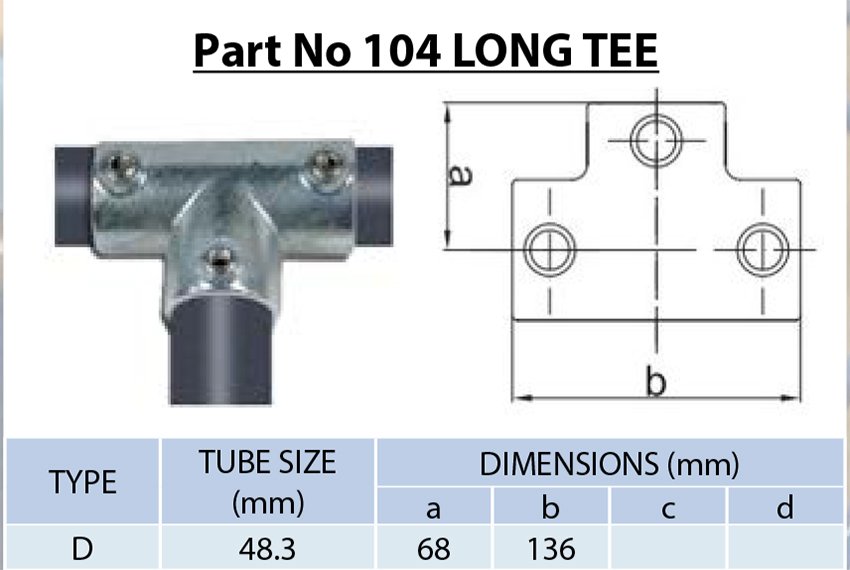

104 Long Tee 48.3 68 136

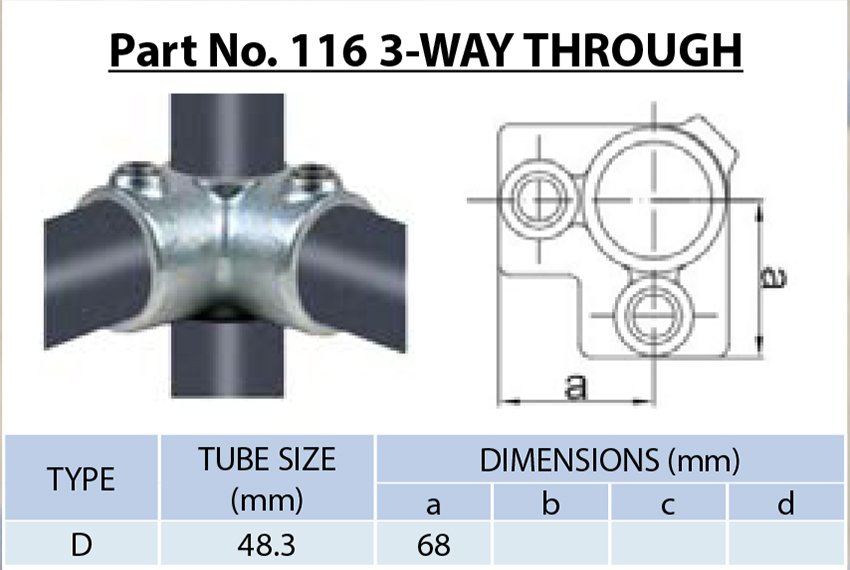

116 3-Way Through 48.3 68

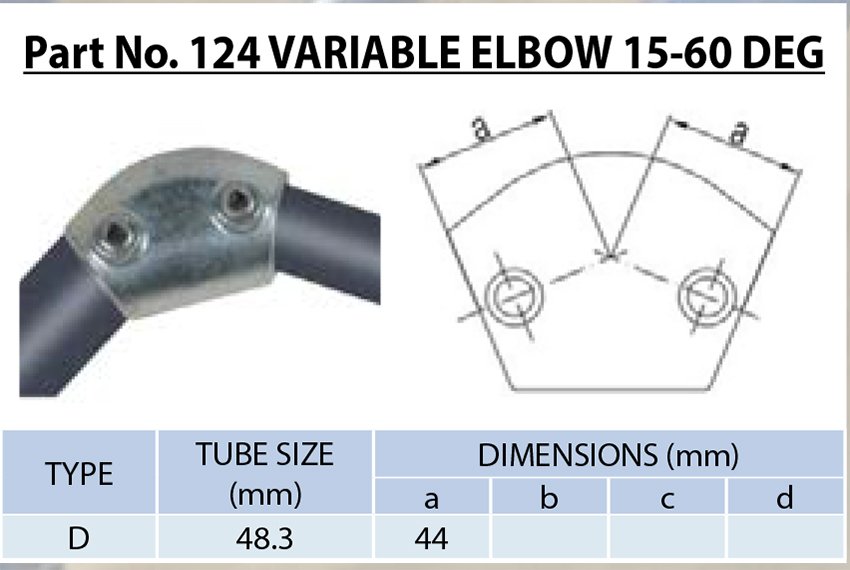

124 Variable Elbow 15-60° 48.3 44

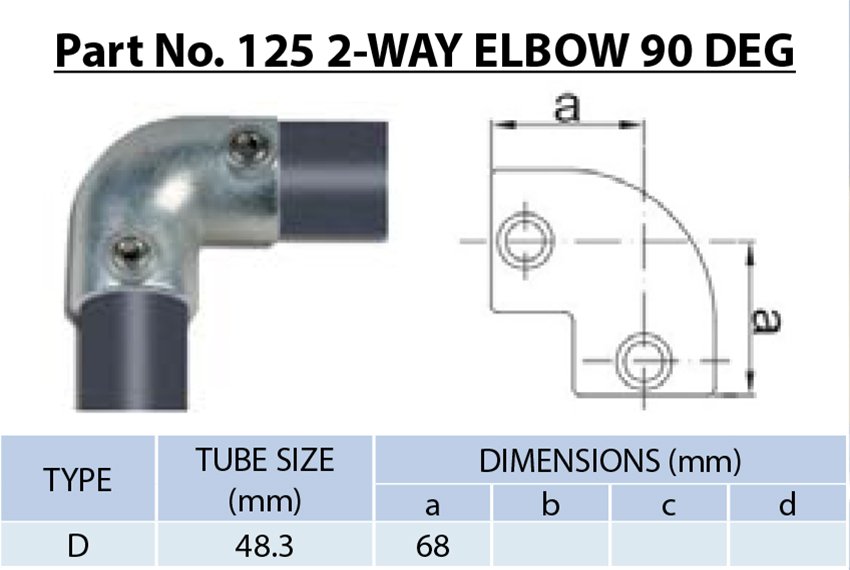

125 2-WAY 2-Way Elbow 90° 48.3 68

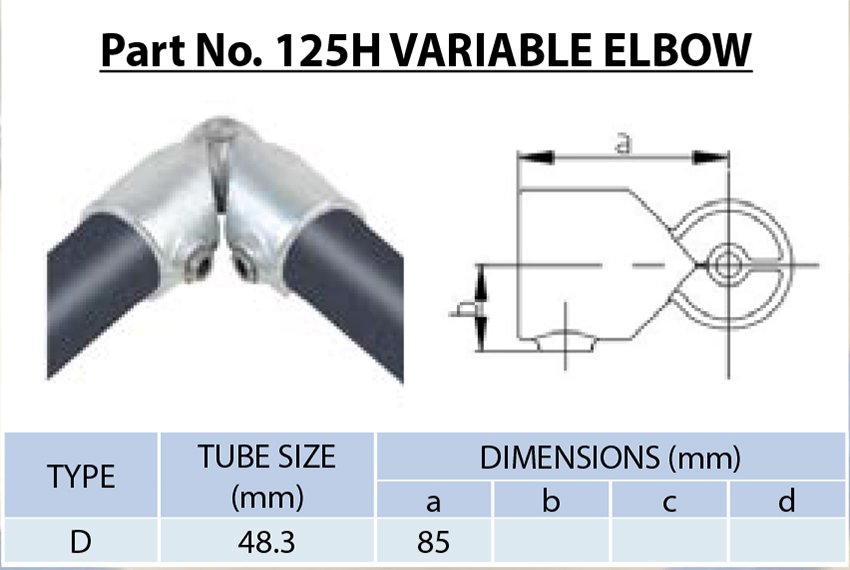

125 Variable Elbow (125H) 48.3 85

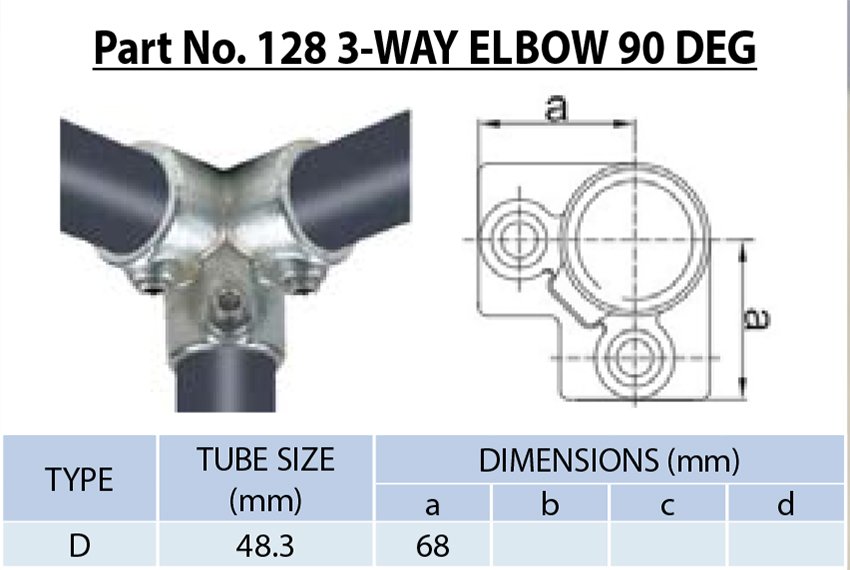

128 3-Way Elbow 90° 48.3 68

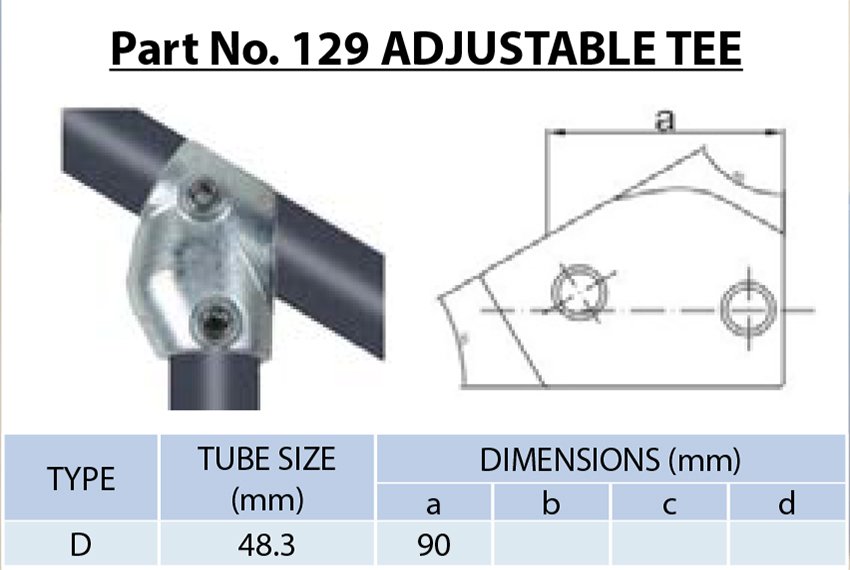

129 Adjustable Tee 48.3 90

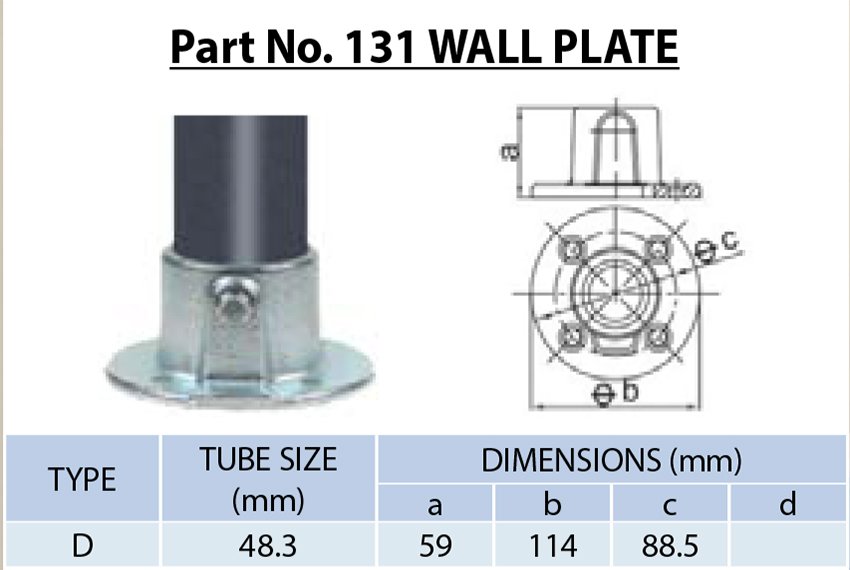

131 Wall Plate 48.3 59 114 88.5

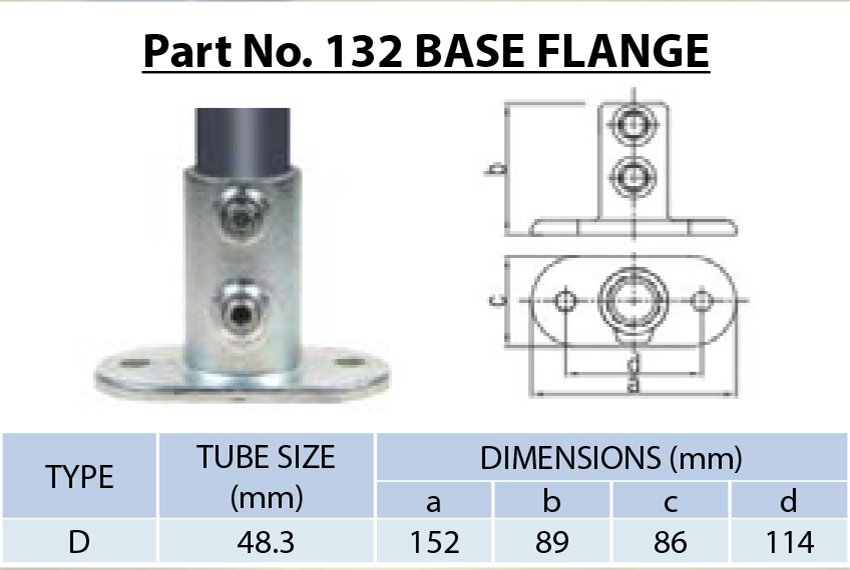

132 Base Flange 48.3 152 89 86 114

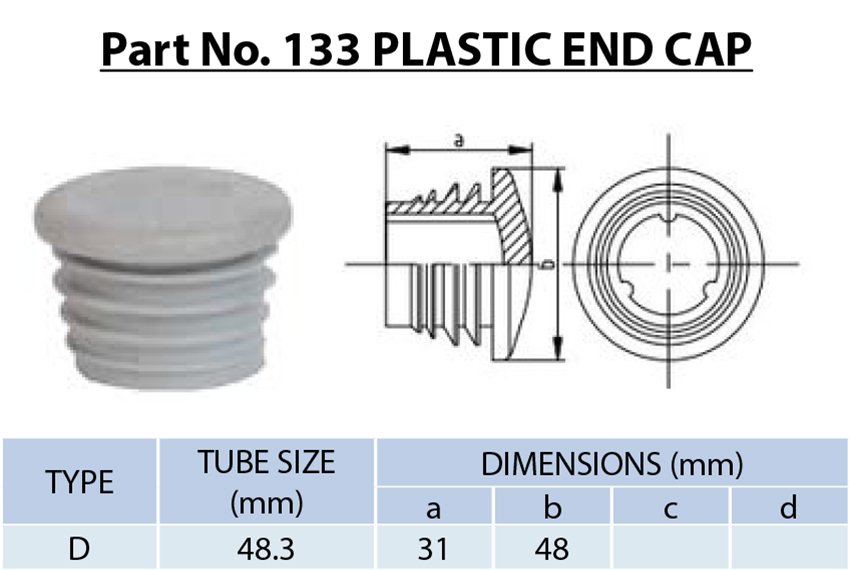

133 Plastic End Cap 48.3 31 48

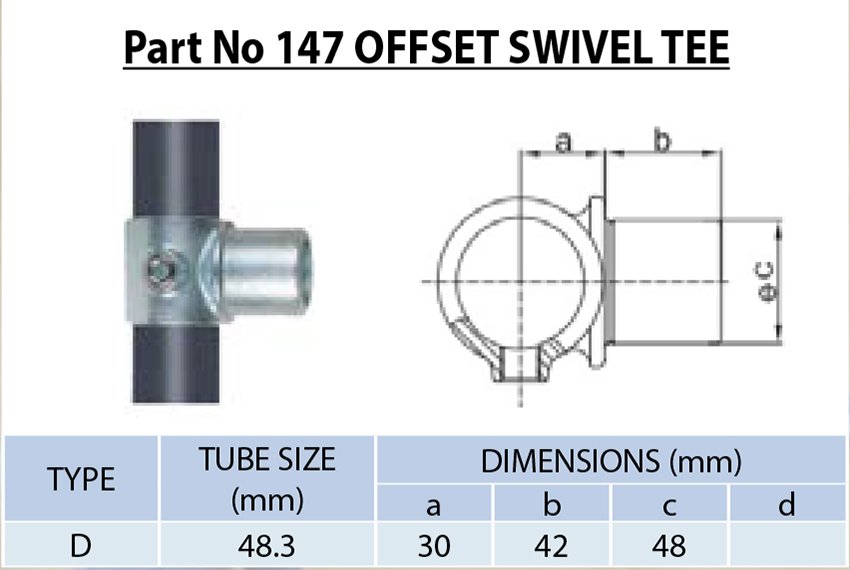

147 Offset Swivel Tee 48.3 30 42 48

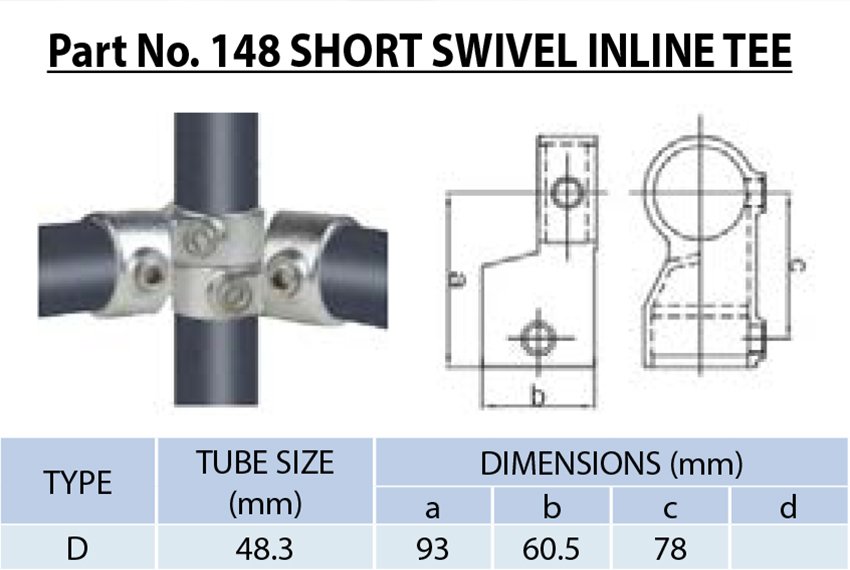

148 Short Swivel Inline Tee 48.3 93 60.5 78

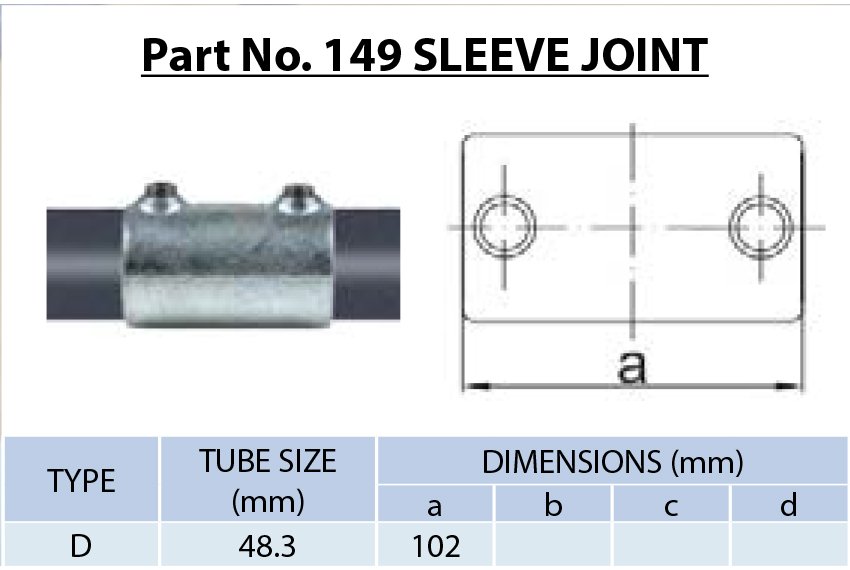

149 Sleeve Joint 48.3 102

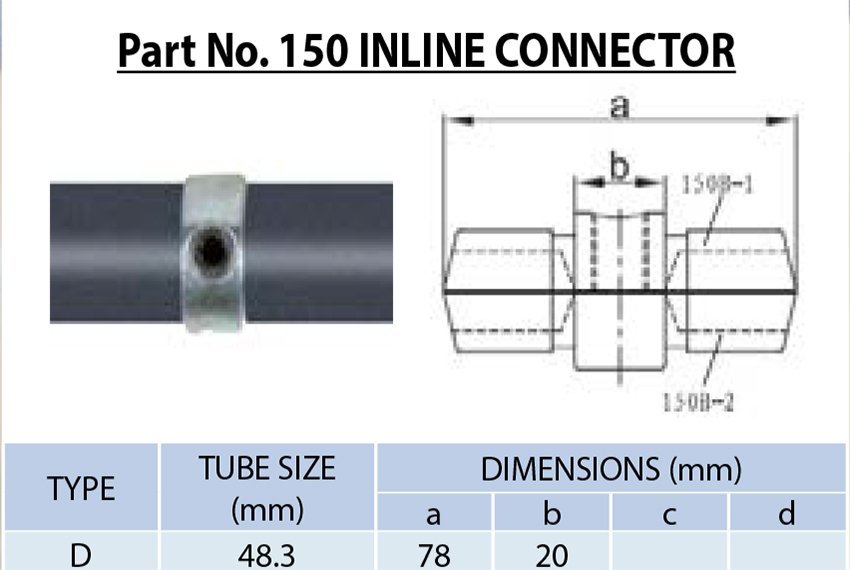

150 Inline Connector 48.3 78 20

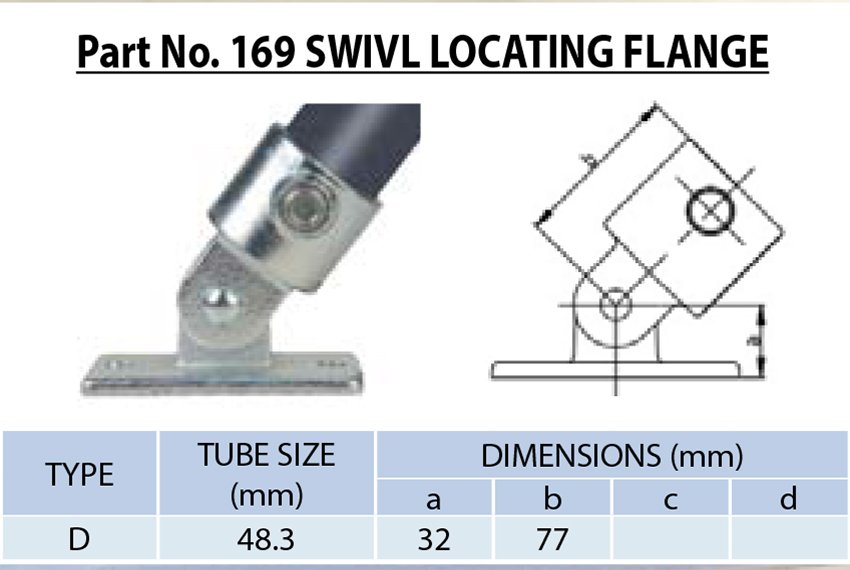

169 Swivel Locating Flange 48.3 32 77

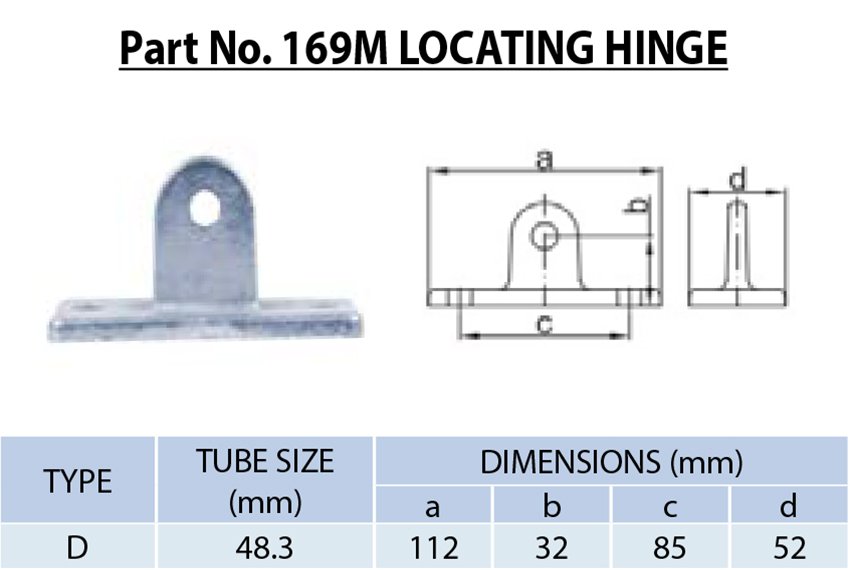

169M Locating Hinge 48.3 112 32 85 52

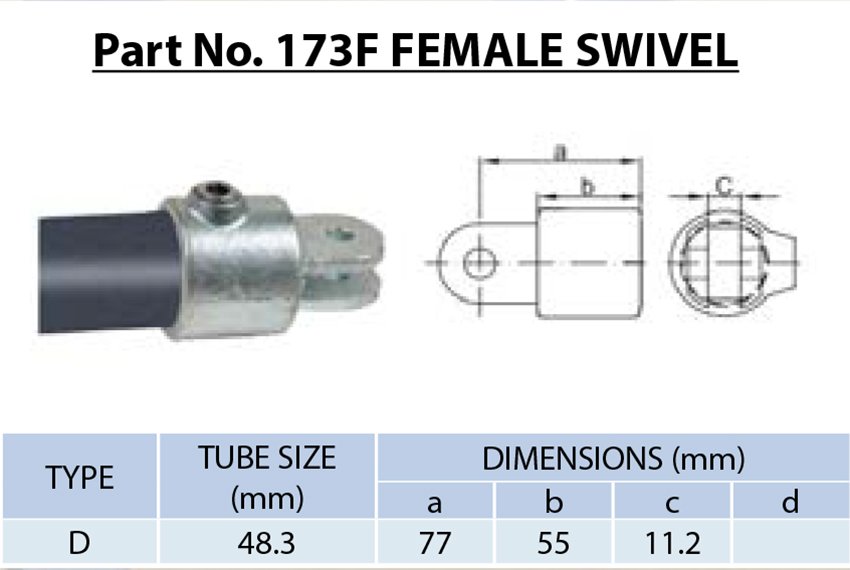

173 Female Swivel (173F) 48.3 77 55 11.2

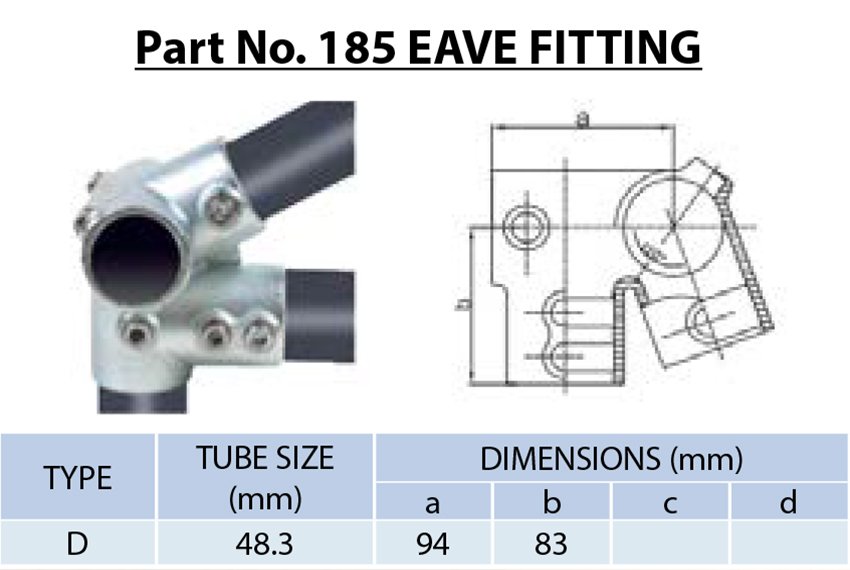

185 Eave Fitting 48.3 94 83

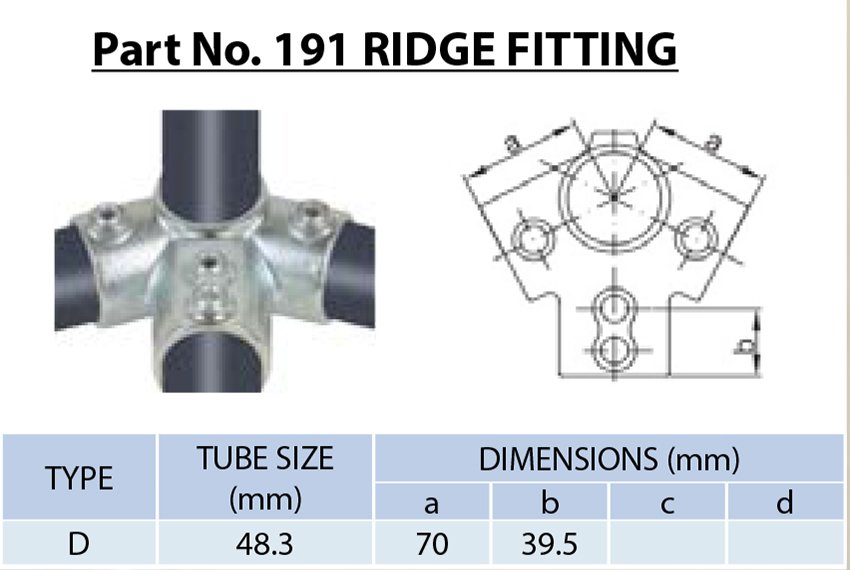

191 Ridge Fitting 48.3 70 39.5
